- Cell:12.8cm Inflation cell diamter*17cells
- Inflation Size(L*W*H):200*90*12.8cm
- Max Weight Support:150kg
- Cover's Material:Nylon PU With Cotton Lining
- Cell's Material:0.42mm Nylon PVC
- Mattress System:Overlay
- Warranty:12 Months
- Type:Medical Anti Decubitus Mattress
- Instrument classification:Class II
- Warranty:1 Year
- After-sale Service:Free spare parts
- Model Number:QDC-5010
- Brand Name:YHMED
- Place of Origin:CN;GUA

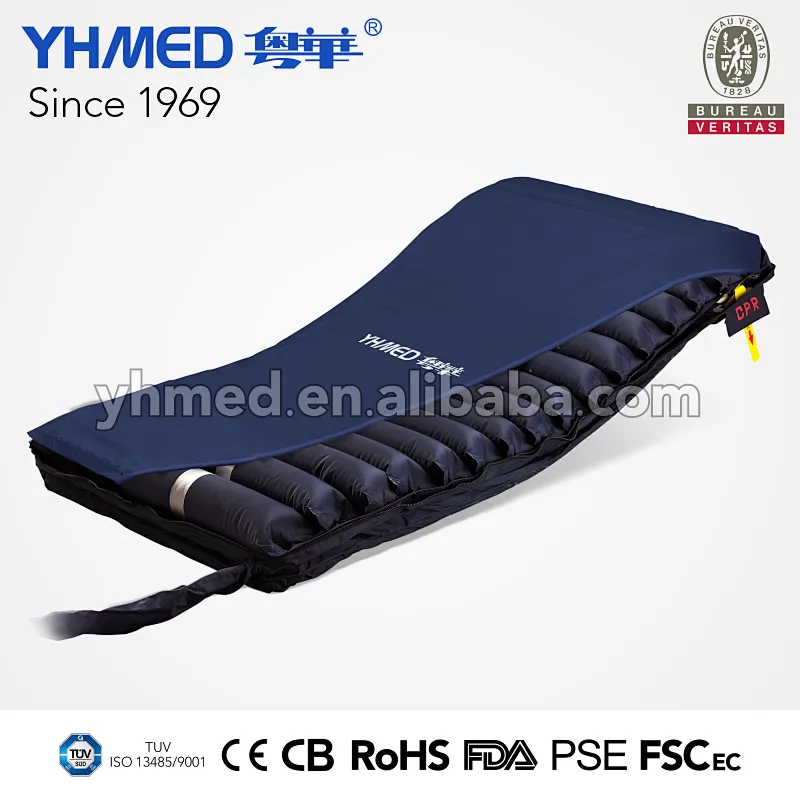

QDC-5010
PVC Nylon Cell
Alternating Pressure Mattress
The QDC-5010 is an effective alternating overlay system combined with static therapy mode. By having 17 pcs of 12.8cm (5'') individual in cycles, patient's receive their adequate pressure relief. The system can be switched to a static mode to facilitate all kinds of nursing procedures including dressing changes. With Air-pressure Dial Adjustment, DQC-5010 is easy to use and is recommended for patients at medium risk to high risk of pressure ulcers (StageⅠ/Ⅱ/Ⅲ).
Nylon PU Cover with Cotton Lining
Biocompatibility, Vapor Permeable & Water
Resistant with CA117 Flame Retardant Level

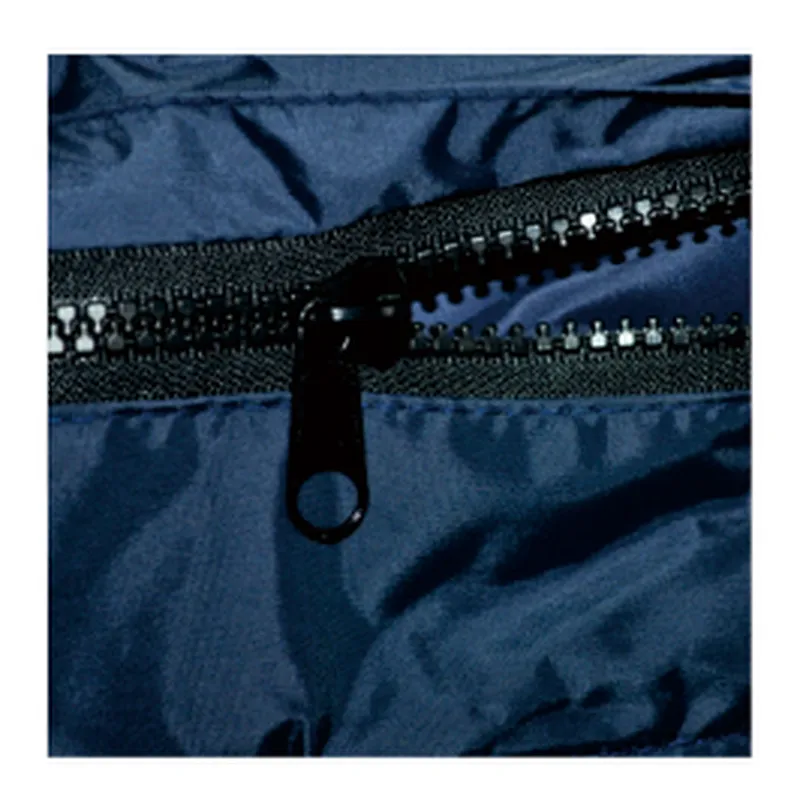

Zipper-All-Around
Cover Reduce ingress of unwanted fluid and can be completely removed for laundry
Ventilated Low-Air-Loss Cells
Wicks moisture away to keep the patient more comfortable
CPR Straps
Quickly deflate the mattress for emergencies
Alternating function
(Group A and Group B as shown in the picture)
The pump will be inflate and deflate for the cell with cyclicity, to change the contact position between the patient and the bed, so that to promote the blood circulation to prevent the bedsore and recovery the bedsore, reduce the patient's pain and the nursing labor intensity.
Pillow function
(Group C as shown in the picture)
The cell of the head position won't be alternating, to provide the most comfortable for the patient.
Spring-Load Tube
Inside the air tubes, springs are installed to prevent any kink or unwanted bending on the tubes that connects pump and mattress to maintain consistent smooth airflow
Slip-Resistant Elastic
Convenience to fix the mattress and avoid the movement.

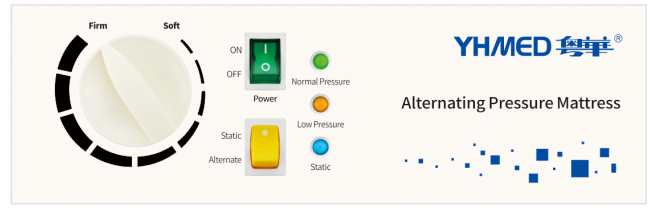

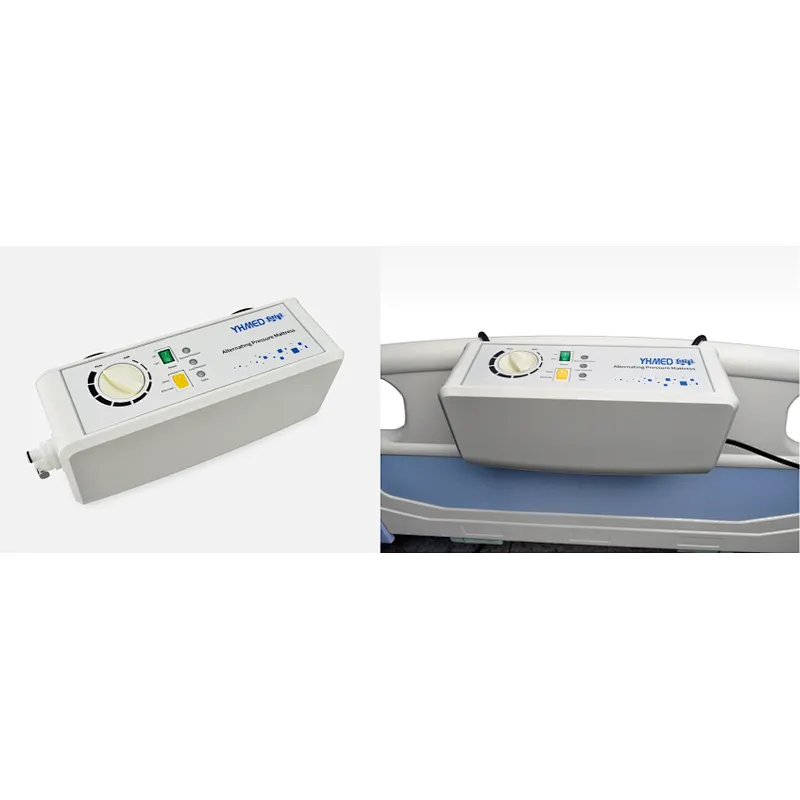

P3000A2QB Pump
Air-pressure Dial Adjustment
Static mode helps with patient reposition and all kinds of nursing care
Low pressure alarm feature increases patient safety
Hanger Design Quick Connector Transfer Function
Easy-to-use Quick Connector with Transfer Cap
Mattress can be transformed from a powered support surface to sealed static air mattress,
providing a uniform stable surface for patient transportation.
Specifications
| model | QDC-5010 | ||
| QDC-5010 Mattress | 5'' Cell Overlay | 5'' Cell+3''Foam Base Pocket Overlay | |
| Dimension(L*W*H) | 200*90*12.8cm | 200*90*12.8cm+3"Base Pocket | |
| Maximum Patient Weight | 150kg | 160kg | |
| Alternating | 1-in-2(Group A&B) | ||
| Cell Height | 17*5''Cells | ||
| Cover Material | Nylon PU with Cotton Lining | ||
| Cell Material | TPU | ||
| Pressure Ulcer Stage | Ⅰ,Ⅱ,Ⅲ | ||
| Warranty | 12Months | ||
| P3000A2QB Pump | Dimension(L*W*H) | 30*13.5*11cm | |
| Case Material | Flame Retardant ABS | ||
| Supply Voltage | AC 220-240,50Hz; 100-120v,60Hz | ||
| Operating Cycle | 12min(50Hz);10min(60Hz) | ||
| Air Output | 7-8L/Min | ||
| Output Pressure Range | 55-120mmHg | ||
| Warranty | 24Months |
Narrow Size (85cm in width) is also available.
Bariatric Size (42'', 48", 54"& 60"in which) is also available.
QDC-5010 should always be used directly on top of an existing surface or an additional foam.
The airflow output and cycle time may vary slightly due to different electrical voltage and frequency.
Optional advanced 2-directional stretch flame retardant cover is also available.
Economy P3000N2EB Pump Optional Advanced P3000A2CB Pump Optional (CPC Quick Connector)

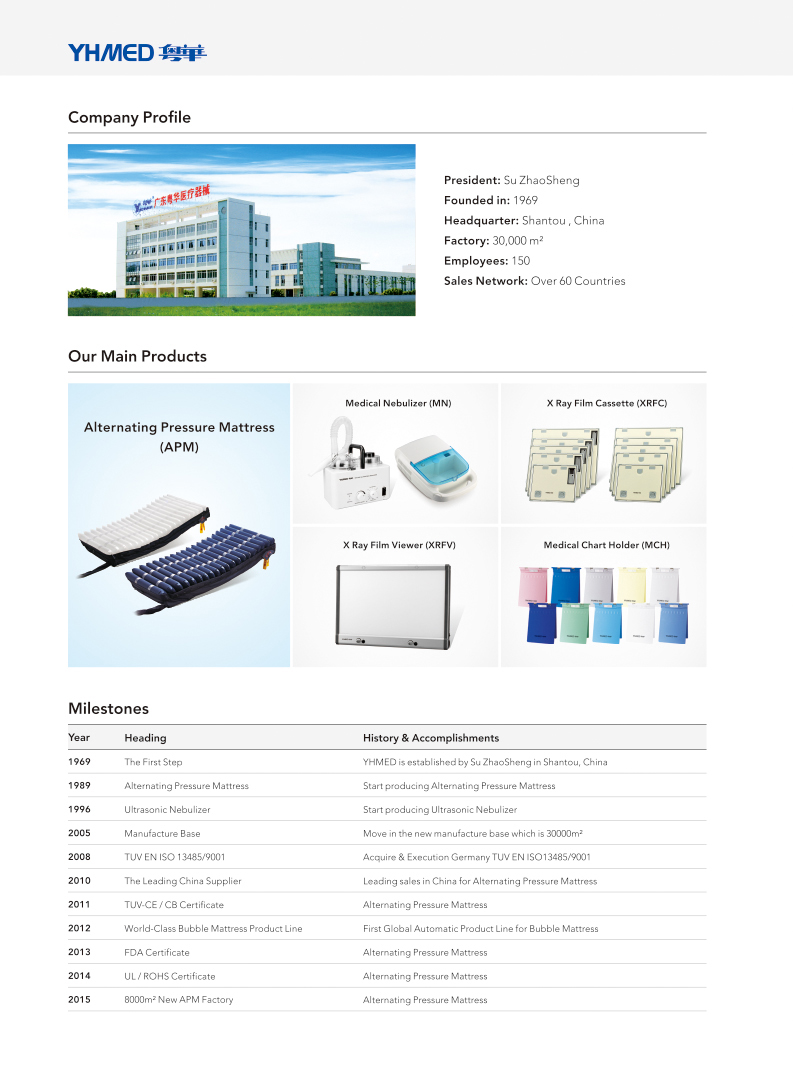

Company Information:
