QDC-500 Alternating Pressure Mattress with Pump
Print This Page

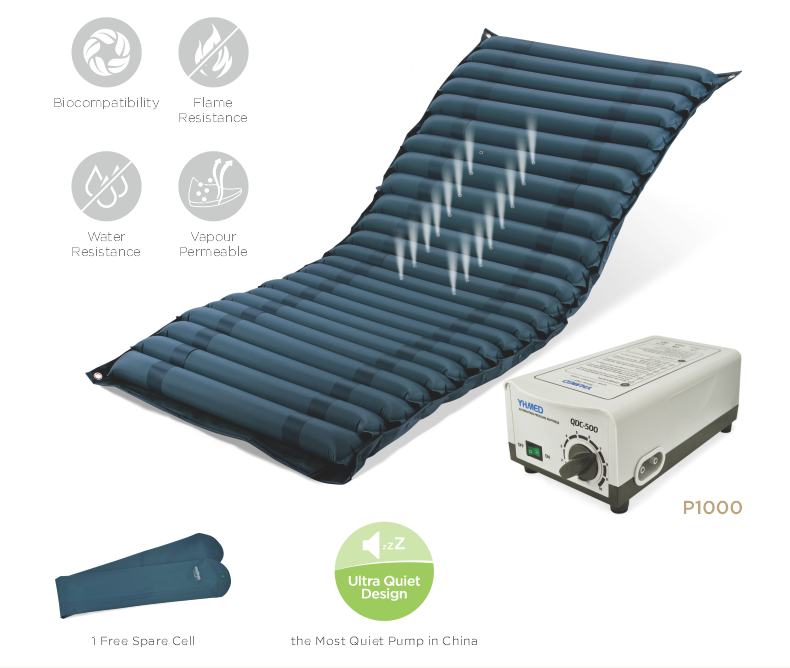

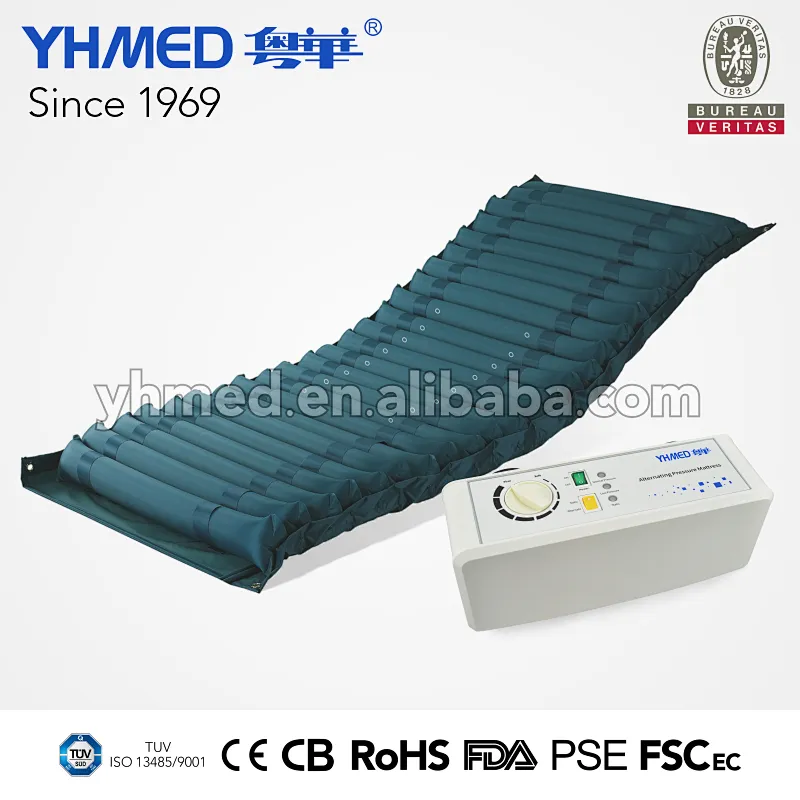

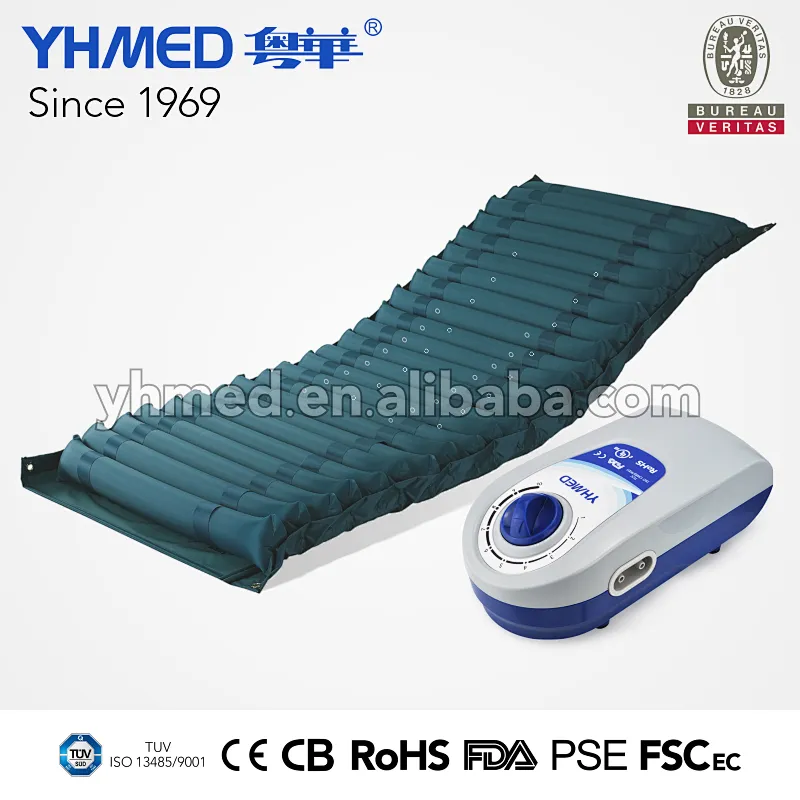

QDC-500 Alternating Pressure Mattress with Pump
Model NO.:
QDC-500
Price:
USD 5.00-400.00 / sets
Delivery:
Minimum order quantity:
200 sets
Supply Ability:
600000.0 sets / Year
Country of Origin:
Shantou,Shenzhen,Guangzhou
Contact Now
Add Inquiry Basket
Product Description
Place of Origin:Guangdong, China (Mainland)
Brand Name:YHMED
Weight support:135kg
Cell and base Material:Nylon + PVC
Cell height:7.5cm / 3''
Type:Medical Anti Decubitus Mattress
Warranty:12 Months
Mattress System:Overlay
Type:Medical Anti Decubitus Mattress
Instrument classification:Class I
Warranty:1 Year
After-sale Service:Free spare parts
Model Number:QDC-500
Brand Name:YEMED
Place of Origin:CN;GUA
Product Description
Specification

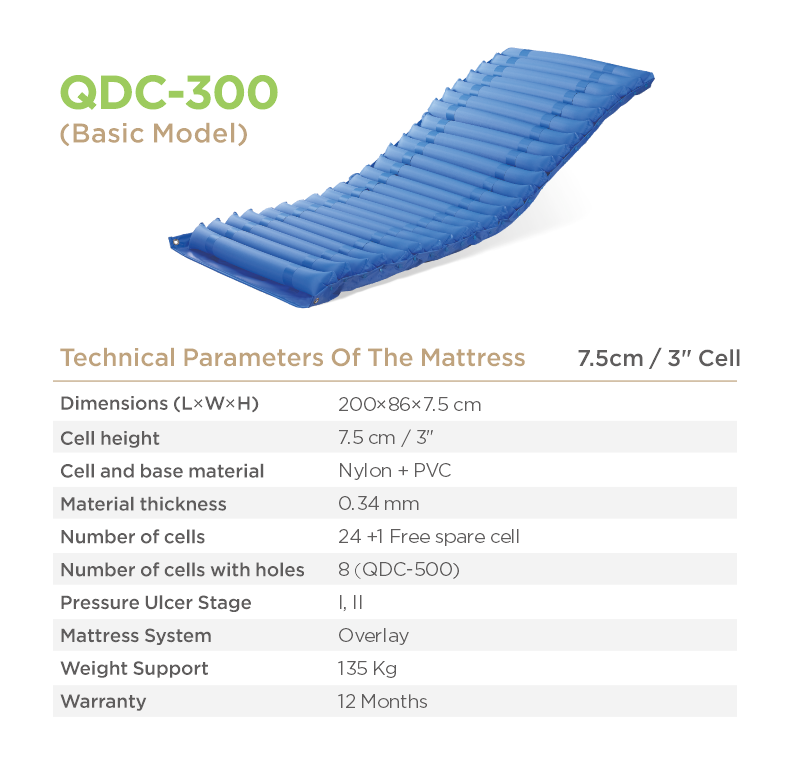

Technical Parameters Of The Mattress
Dimensions without flap(L*W*H)
200*86*7.5cm
Cell height
7.5 cm/ 3''
Number of cells with holes
8
Material thickness
0.36mm
Cell and base material
Nylon+PVC
Number of cells
24+1 Free space cell
Weight support
135kg
Mattress system
Overlay
Pressure Ulcer Stage
Ⅰ, Ⅱ
Warranty
12months

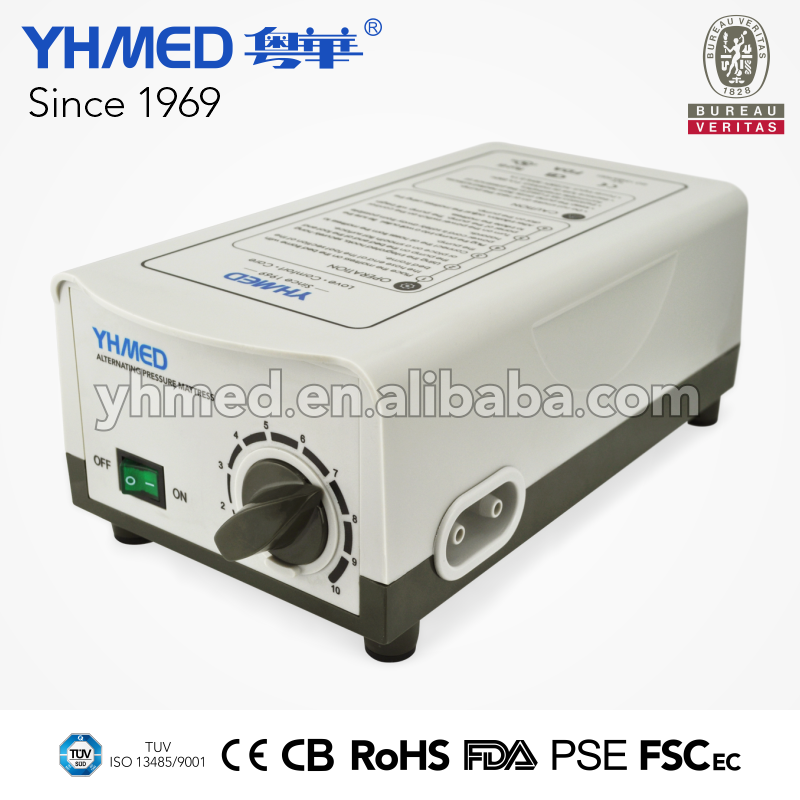

Technical Parameters Of The Pump (P1000)
(the most quiet pump in China)
Electrical
AC 110V/220V 50Hz/60Hz
Pressure
55-120 mmHg
Air output
7-8 Liter/min
Dimensions(L*W*H)
26.5*13.5*10 cm
Plastic Casing
Taiwan Chimei ABS
Test Duration
24 Hours (Inflation)
Certificates
TUV-CE IEC/EN60601-1&60601-1-2
Synchronous Motor
TW Ann Yih Brand
Cycle time
12 min
Warranty
24 Months
Company Profie
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Related Products

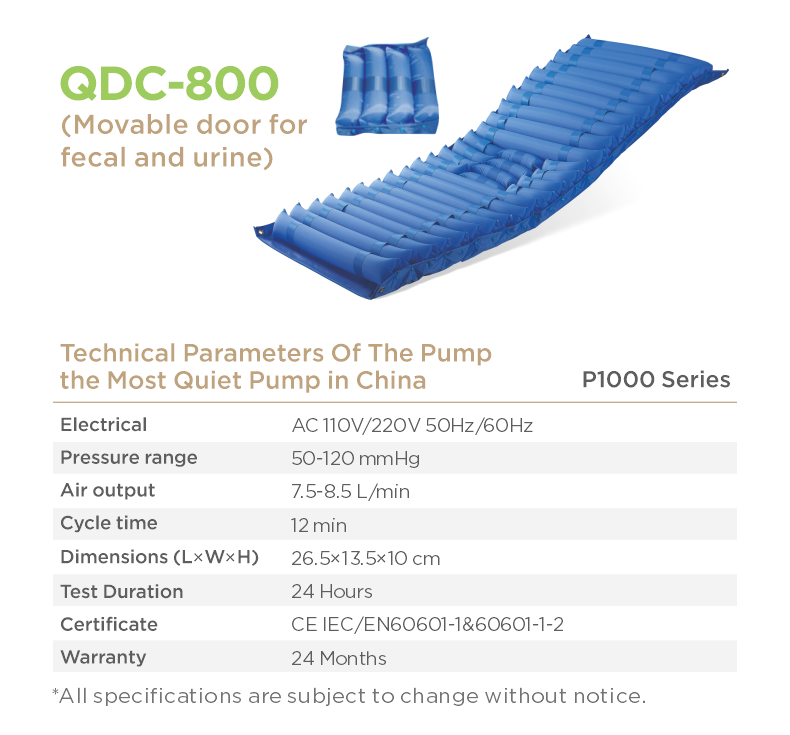

Hospital Ripple mattress
