- Place of Origin:CN;GUA
- Type:General Medical Supplies
- Brand Name:YHMED
- Properties:Medical Polymer Materials & Products
- Model Number:QDC-301
- Type:Air mattress inflatable
- Size:200*90*11cm(Mattres); 26.5*13.5*10cm(Pump)
- Material:Nylon+PVC
- Material thickness:0.34mm
- Air Output:7~8 Liter / Min
- Color:Green
- ISO Certificate:TUV-ISO13485, ISO9001
- CE Certificate:TUV-CE,CB
- FDA & UL Certificate:USA FDA & UL

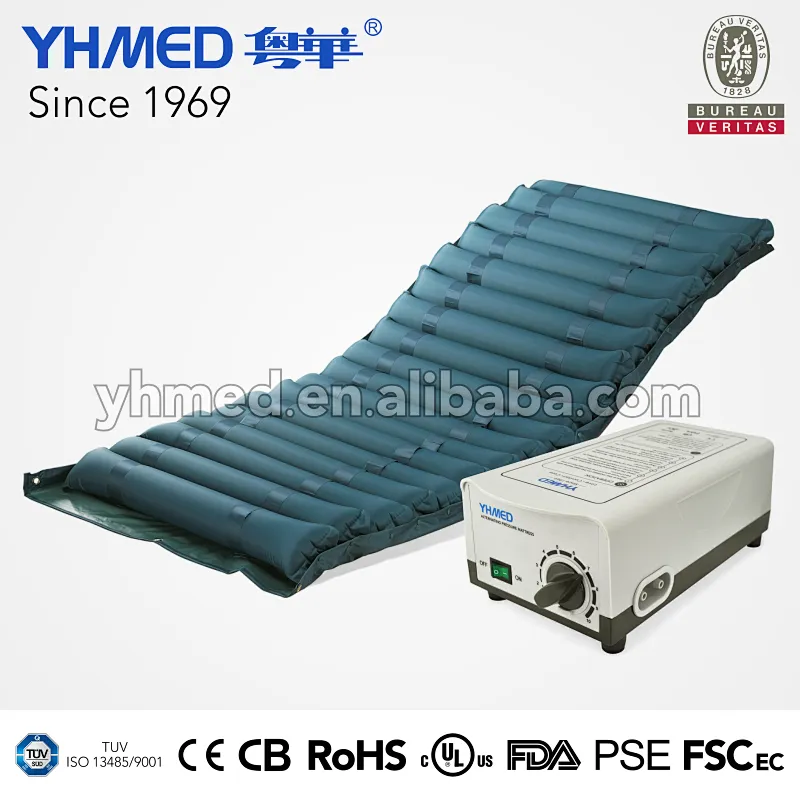

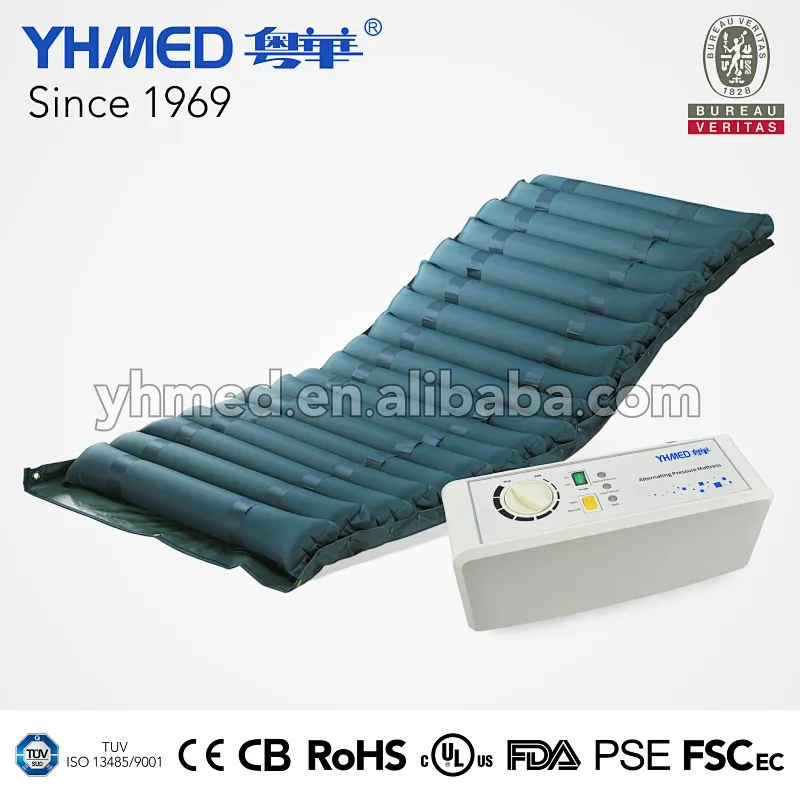

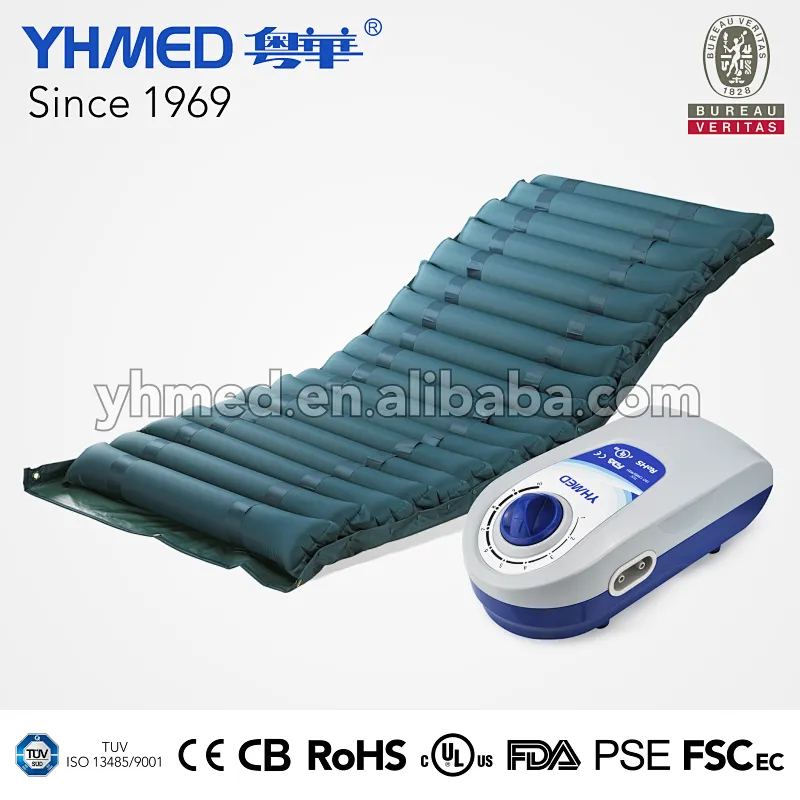

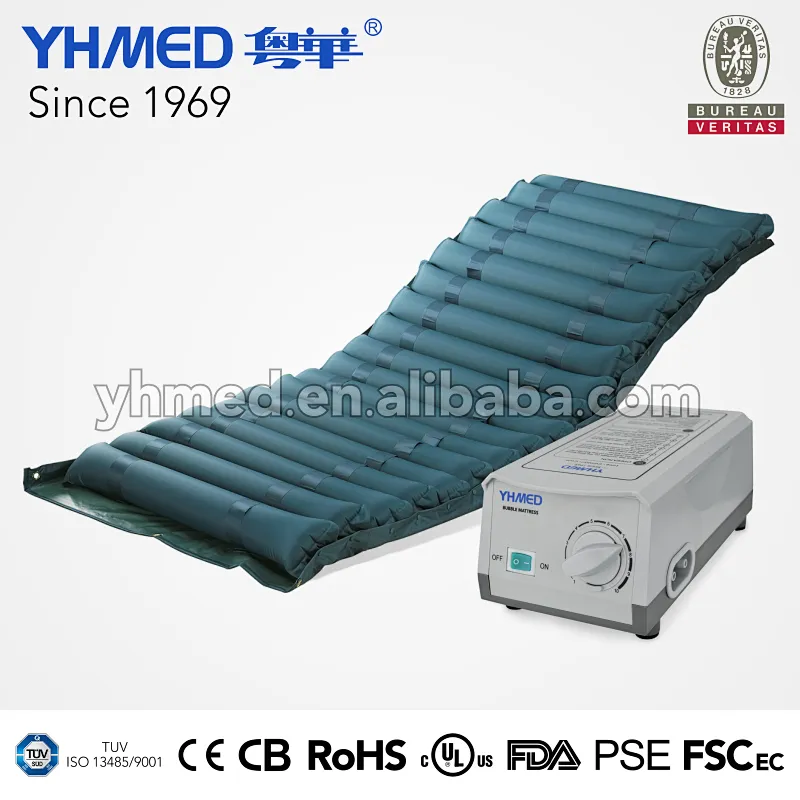

New anti decubitus anti bedsore mattress inflatable air bed mattress
En71 Medical-Grade 0.34mm Nylon+PVC
Cold-resistant-30°c
QDC-301 is recommended for the treatment and prevention of pressure sore stage Ⅰ and Ⅱ in long-term and domiciliary therapies. The 18 11cm-high cells in Nylon+PVC are comfortable. They are fixed by means of press-studs.
Technical Parameters Of The Mattress
| Dimensions without flap(L*W*H) 200*90*11cm |
| Cell height 11cm/4.5'' |
| Cell and base material Nylon+PVC |
| Material thickness 0.34mm |
| Number of cells 18+1 free spare cell |
| Test Durable 24 Hours(Inflation) |
| Pressure ulcer stage I,II |
| Mattress system Overlay |
| Weight support 145kg |
| Warranty 12 Months |
Very easy to install, use and maintain with the possibility of adjusting the pressure according to the patient's weight. They are also easily interchangeable in case of breakage. The pump can be hung to the end of the bed by means of two hooks.
Technical Parameters Of The Pump
The most quiet pump in China(P1000)
| Electrical | AC 110V/220V 50Hz/60Hz |
| Pressure range | 55-110 mmHg |
| Pump Noise lent | 31-32dB(A) |
| Cycle time | 12 min |
| Air output | 7-8L/min |
| Dimensions(L*W*H) | 26.5*13.5*10 cm |
| Plastic Casing | Taiwan Chimei ABS |
| Test Duration | 24 Hours |
| Certificate | TUV-CE IEC/EN60601-1&60601-1-2 |
| Synchronous Motor | TW Ann Yih Brand |
| Warranty | 24 Months |
